TELSİZ MİKROFONLAR ACT - SERİSİ


1

MİPRO ACT-311 EL

  • "Diversity Frequency Range UHF 480~934MHz Antenna Rear Panel. Detachable. Preset Channels 112 preset channels. Group 1-6: 8 compatible channels in each group. Group 7-10: 16 compatible channels in each group. Group 11: Up to 8 channels can be saved & recalled. 961 user-defined frequencies in group 11. Oscillation Mode PLL Synthesized, Frequency Stability≦±0.005% (-10~+60℃) Sensitivity 10dBμV, at S/N>80dB S/N Ratio>106dB(A) T.H.D. <0.5% @ 1KHz Frequency Response 50Hz~18KHz, with high pass filter. Squelch "" PiloTone & NoiseLock"" dual-squelch circuit. Audio Output Adjustment Output level accurately pre-adjusted to equal to the microphone capsule sensitivity. Maximum Output Level 2-level Switch: Line & Mic Power Supply External AC Adapter, 12~15V DC, 1A Dimensions 210(W)×44(H)×180(D)mm / 8.3(W)x1.7(H)x7.1(D)"" Weight Approx. 0.8kg"
2

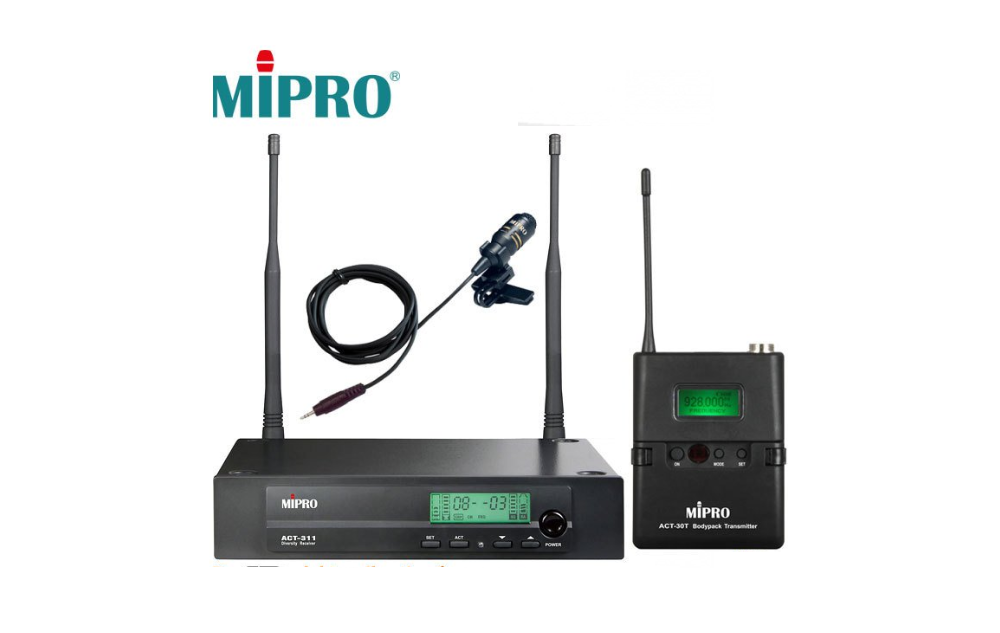

MİPRO ACT-311 YAKA

  • "Channel Single Chassis EIA-Standard 19"" 1/2U Receiving Mode Diversity Frequency Range UHF 480~934MHz Antenna Rear Panel. Detachable. Preset Channels 112 preset channels. Group 1-6: 8 compatible channels in each group. Group 7-10: 16 compatible channels in each group. Group 11: Up to 8 channels can be saved & recalled. 961 user-defined frequencies in group 11. Oscillation Mode PLL Synthesized, Frequency Stability≦±0.005% (-10~+60℃) Sensitivity 10dBμV, at S/N>80dB S/N Ratio>106dB(A) T.H.D. <0.5% @ 1KHz Frequency Response 50Hz~18KHz, with high pass filter. Squelch "" PiloTone & NoiseLock"" dual-squelch circuit. Audio Output Adjustment Output level accurately pre-adjusted to equal to the microphone capsule sensitivity. Maximum Output Level 2-level Switch: Line & Mic Power Supply External AC Adapter, 12~15V DC, 1A Dimensions 210(W)×44(H)×180(D)mm / 8.3(W)x1.7(H)x7.1(D)"" Weight Approx. 0.8kg"
3

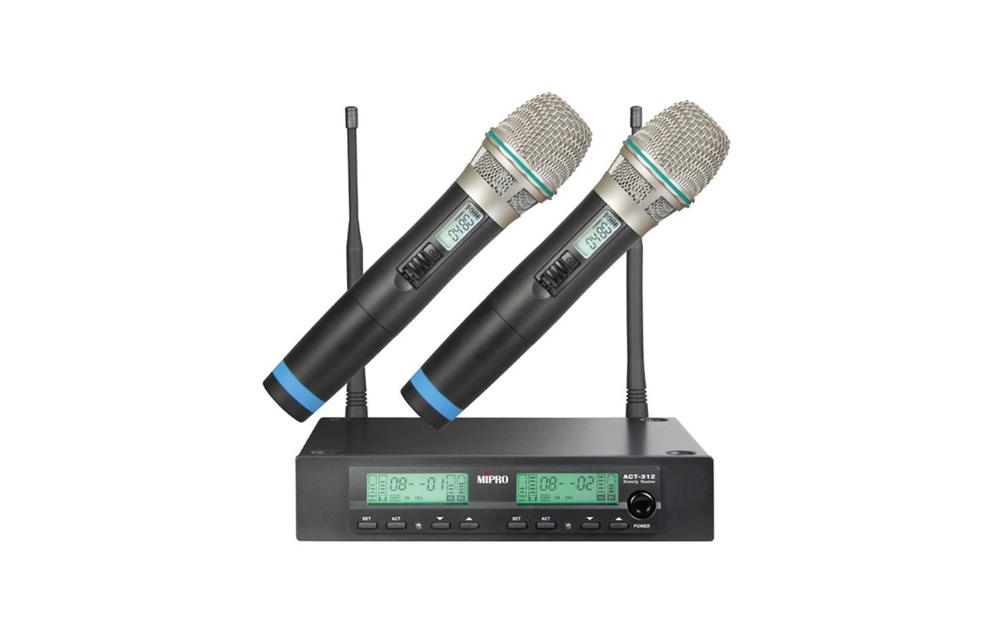

MİPRO ACT-312 EL

  • "Channel Dual Chassis EIA-Standard 19"" 1/2UReceiving Mode Diversity Frequency Range UHF 480~934MHz Antenna Rear Panel. Detachable. Preset Channels 112 preset channels. Group 1-6: 8 compatible channels in each group. Group 7-10: 16 compatible channels in each group. Group 11: Up to 8 channels can be saved & recalled. 961 user-defined frequencies in group 11. Oscillation Mode PLL Synthesized, Frequency Stability≦±0.005% (-10~+60℃) Sensitivity 10dBμV, at S/N>80dB S/N Ratio>106dB(A) T.H.D.<0.5% @ 1KHz Frequency Response 50Hz~18KHz, with high pass filter. Squelch "" PiloTone & NoiseLock"" dual-squelch circuit. Audio Output Adjustment Output level accurately pre-adjusted to equal to the microphone capsule sensitivity. Maximum Output Level 2-level Switch: Line & Mic Power Supply External AC Adapter, 12~15V DC, 1A Dimensions 210(W)×44(H)×180(D)mm / 8.3(W)x1.7(H)x7.1(D)"" Weight Approx. 0.95kg"
4

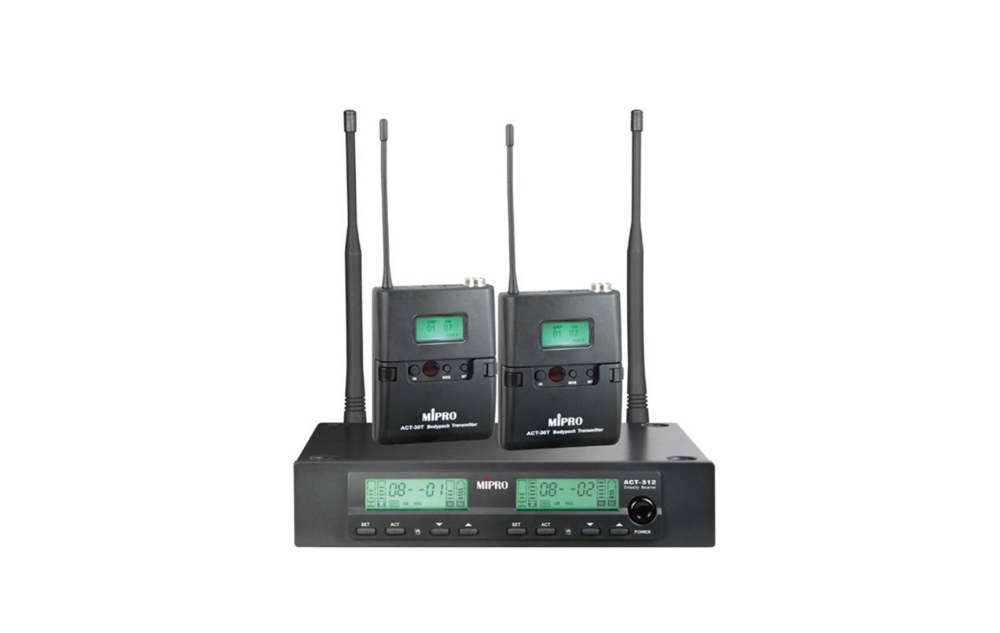

MİPRO ACT-312 YAKA

  • "Channel Dual Chassis EIA-Standard 19"" 1/2UReceiving Mode Diversity Frequency Range UHF 480~934MHz Antenna Rear Panel. Detachable. Preset Channels 112 preset channels. Group 1-6: 8 compatible channels in each group. Group 7-10: 16 compatible channels in each group. Group 11: Up to 8 channels can be saved & recalled. 961 user-defined frequencies in group 11. Oscillation Mode PLL Synthesized, Frequency Stability≦±0.005% (-10~+60℃) Sensitivity 10dBμV, at S/N>80dB S/N Ratio>106dB(A) T.H.D.<0.5% @ 1KHz Frequency Response 50Hz~18KHz, with high pass filter. Squelch "" PiloTone & NoiseLock"" dual-squelch circuit. Audio Output Adjustment Output level accurately pre-adjusted to equal to the microphone capsule sensitivity. Maximum Output Level 2-level Switch: Line & Mic Power Supply External AC Adapter, 12~15V DC, 1A Dimensions 210(W)×44(H)×180(D)mm / 8.3(W)x1.7(H)x7.1(D)"" Weight Approx. 0.95kg"
5

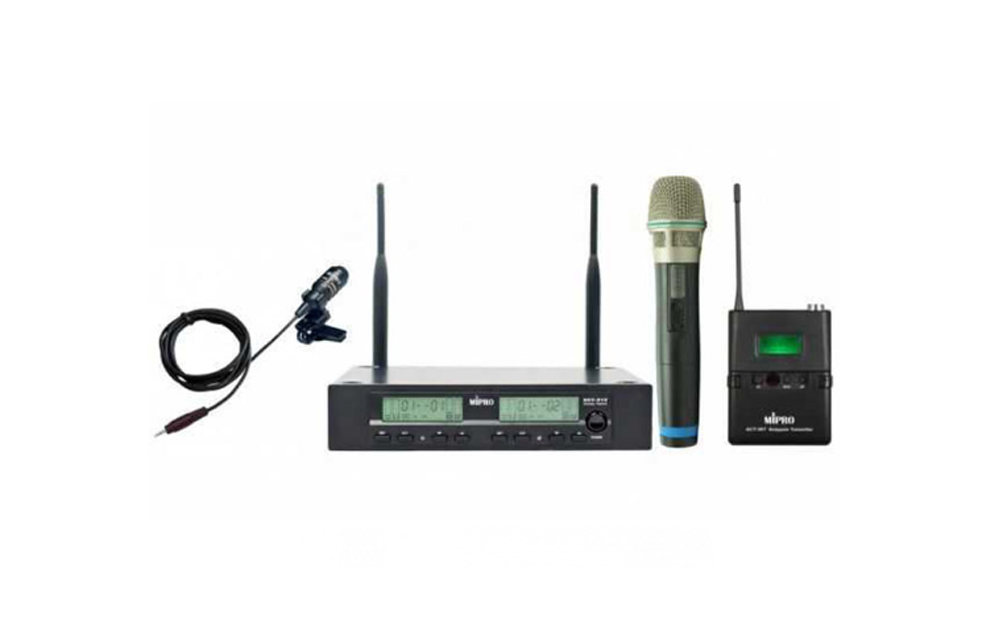

MİPRO ACT-312 EL + YAKA

  • "Channel Dual Chassis EIA-Standard 19"" 1/2UReceiving Mode Diversity Frequency Range UHF 480~934MHz Antenna Rear Panel. Detachable. Preset Channels 112 preset channels. Group 1-6: 8 compatible channels in each group. Group 7-10: 16 compatible channels in each group. Group 11: Up to 8 channels can be saved & recalled. 961 user-defined frequencies in group 11. Oscillation Mode PLL Synthesized, Frequency Stability≦±0.005% (-10~+60℃) Sensitivity 10dBμV, at S/N>80dB S/N Ratio>106dB(A) T.H.D.<0.5% @ 1KHz Frequency Response 50Hz~18KHz, with high pass filter. Squelch "" PiloTone & NoiseLock"" dual-squelch circuit. Audio Output Adjustment Output level accurately pre-adjusted to equal to the microphone capsule sensitivity. Maximum Output Level 2-level Switch: Line & Mic Power Supply External AC Adapter, 12~15V DC, 1A Dimensions 210(W)×44(H)×180(D)mm / 8.3(W)x1.7(H)x7.1(D)"" Weight Approx. 0.95kg"

TELSİZ MİKROFONLAR MR - SERİSİ

6

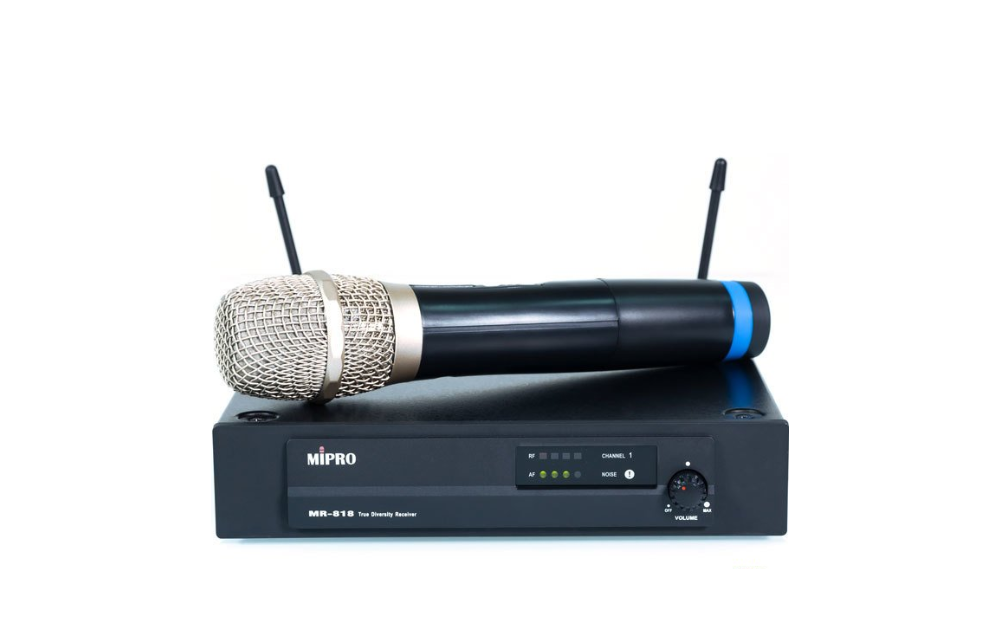

MİPRO MR-818 EL

  • "UHF Telsiz El Mikrofonu, True Diversity, PLL Synthesized Sensitivity 8 dBμV at S/N > 80 dB, S/N Ratio > 106 dB(A), T.H.D. < 0.5% @ 1 kHz, Frequency Response 50 Hz – 18 kHz, Squelch “PiloTone & NoiseLock” dual-squelch circuit, Max. Output Level 2-level Switch: Line & Mic, Power Supply 12 – 15V DC, 1A"
7

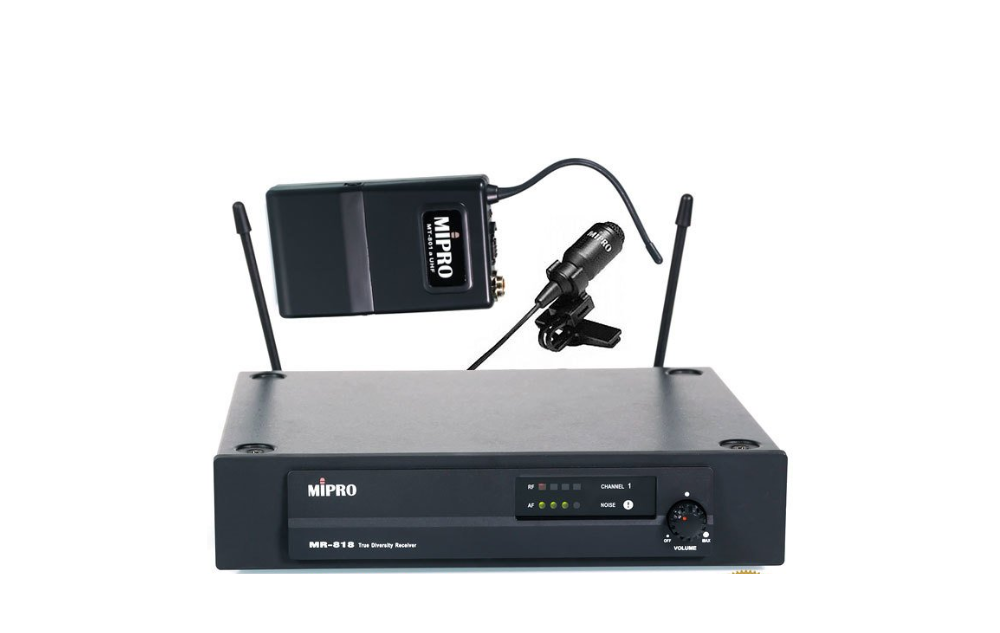

MİPRO MR-818 YAKA

  • "UHF Telsiz Yaka Mikrofonu, True Diversity, PLL Synthesized Sensitivity 8 dBμV at S/N > 80 dB, S/N Ratio > 106 dB(A), T.H.D. < 0.5% @ 1 kHz, Frequency Response 50 Hz – 18 kHz, Squelch “PiloTone & NoiseLock” dual-squelch circuit, Max. Output Level 2-level Switch: Line & Mic, Power Supply 12 – 15V DC, 1A"
8

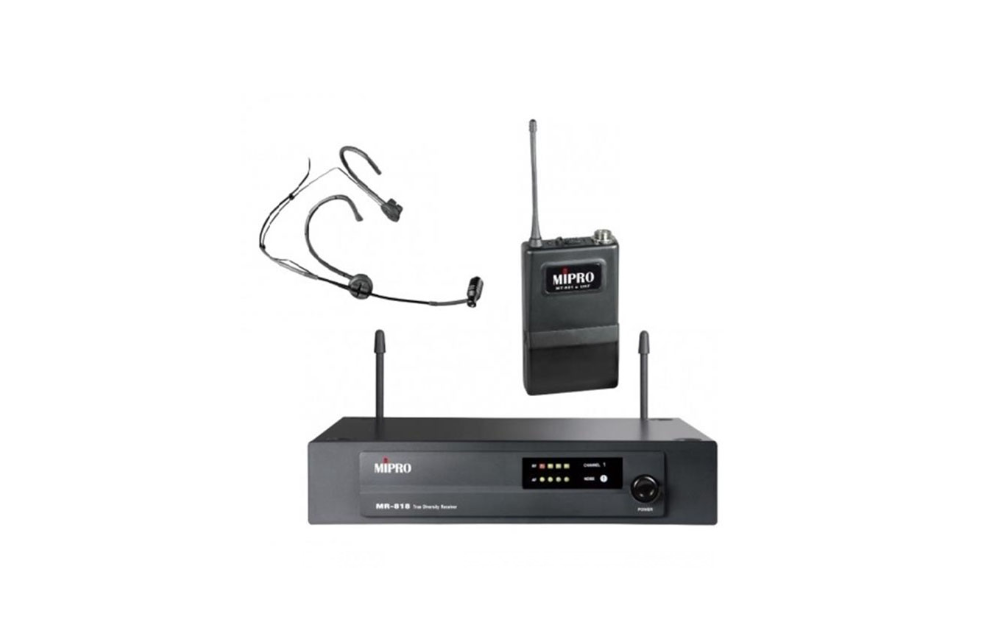

MİPRO MR-818 HEADSET

  • UHF Telsiz Headset Mikrofonu, True Diversity, PLL Synthesized, Sensitivity 8 dBμV at S/N > 80 dB, S/N Ratio > 106 dB(A), T.H.D. < 0.5% @ 1 kHz, Frequency Response 50 Hz – 18 kHz, Squelch “PiloTone & NoiseLock” dual-squelch circuit, Max. Output Level 2-level Switch: Line & Mic, Power Supply 12 – 15V DC, 1A
9

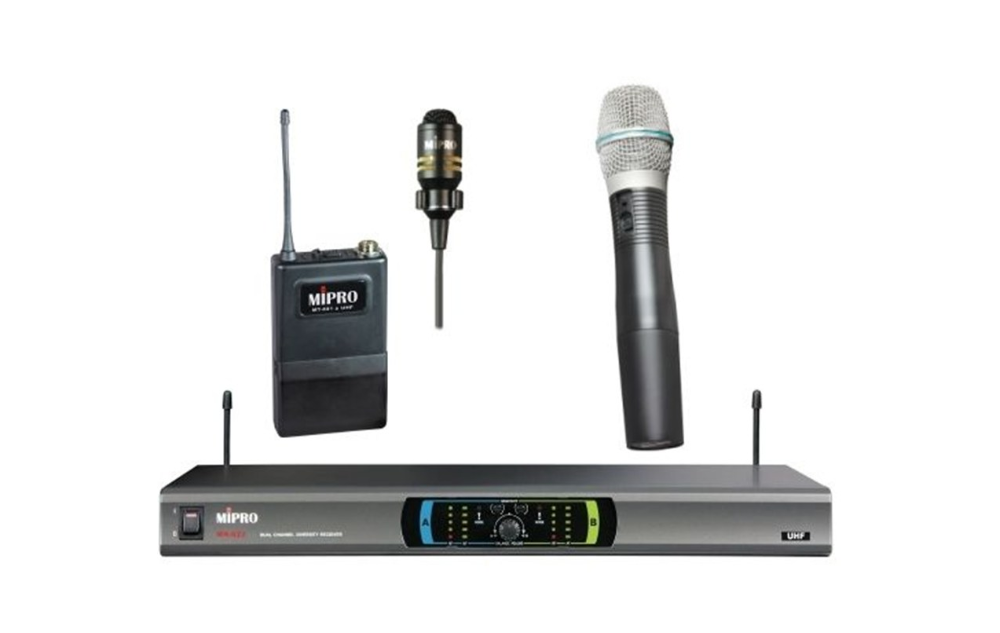

MİPRO MR-823 EL

  • UHF Telsiz mikrofon, çift anten, ÇİFT yaka mikrofonu,UHF 760~950MHz, 60Hz~18KHz, 420(W)×44(H)×204(D)mm ,
10

MİPRO MR-823 YAKA

  • UHF Seyyar anfili hoparlörlü telsiz mikrofon, 70 watt RMS 8 ohm 60 Hz-20 kHz +/-3 dB, 430x295x230, 6 saat şarj kullanımı, CD'li, akülü,13kg
